SURGICAL INSTRUMENT MANUFACTURING PROCESS

A transparent look at the production stages involved in manufacturing professional surgical instruments in Sialkot, Pakistan.

Manufacturing Transparency

ENGINEERED STAGES FOR PROFESSIONAL RELIABILITY

Production of surgical instruments involves metallurgical selection, precise tooling, skilled artisan hand-crafting, and controlled passivation. Depending on instrument geometry and customer specifications, production may include stages such as the following documented workflows:

Raw material stainless steel review for surgical instruments MK Surgical

Stage 01: Metallurgy & Receiving

RAW MATERIAL REVIEW

Production begins with strict metallurgical review of incoming surgical stainless steel. Martensitic and austenitic steels (including AISI 420 and AISI 440 series) are inspected for chemical composition, grain structure, and freedom from inclusions or surface fissures.

Spectrometric grade verification of stainless steel round bars and sheets

Verification of carbon, chromium, and molybdenum alloy content

Material test certifications and batch quarantine protocols

Hot drop forging and hydraulic forming of surgical instrument blanks

Stage 02: Blank Shaping

FORGING / FORMING

High-energy hot drop forging and hydraulic press stamping are employed to compress the grain structure of the steel into near-net shape instrument blanks. Forging refines mechanical toughness and fatigue resistance for heavy-load instruments like bone rongeurs and clamps.

Precision die impression forging matching international pattern blueprints

Controlled thermal cycling to prevent micro-fractures in high-carbon steel

Trimming of excess forging flash along parting lines

Stage 03: Precision Dimensioning

MACHINING

Instrument blanks undergo CNC milling, wire electrical discharge machining (EDM), and turning to produce precise screw channels, box-lock joints, ratchets, and shaft curvatures with tight tolerances.

Milling of hinge slots, guide tracks, and tongue-and-groove joints

Precision boring for pivot screw threading and torque retention

Calibrated depth index cutting for spinal and orthopedic measurements

Stage 04: Edge Profiling & Serrations

GRINDING

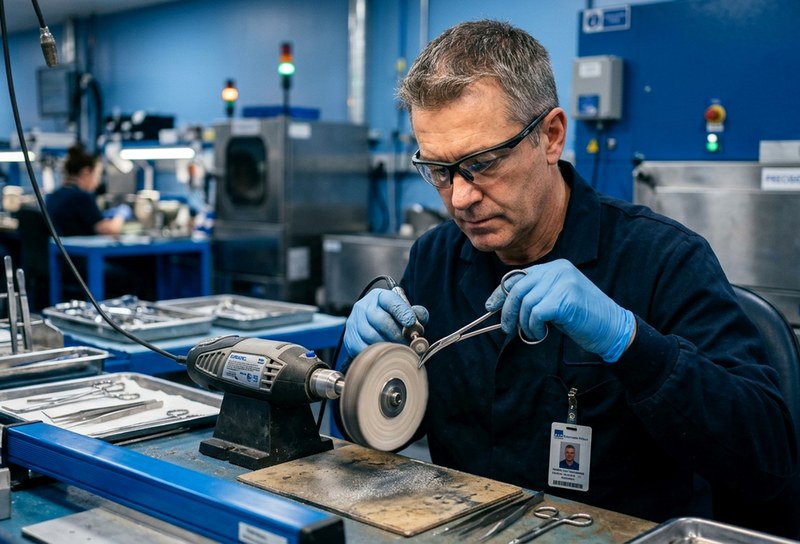

Skilled instrument craftsmen grind outer profiles, shape delicate beaks, and mill cross-serrations into forceps jaws. Scissors blades are hand-beveled and shear angles ground for effortless tissue cutting without crushing.

Manual profiling on graduated grinding wheels to ensure balanced weight

Micro-serration cutting for atraumatic tissue handling

Honing of scissor cutting edges and rongeur scoop cups

Stage 05: Joint Fitting & Alignment

ASSEMBLY

Forceps halves, scissor shanks, and rongeur linkages are paired and assembled. Joint pins and screws are fitted with calibrated torque, ensuring smooth hinge articulation with zero lateral wobble or stiffness across repetitive open-close motions.

Hand-fitting of box-lock joints and flush screw rivet settings

Verification of jaw tip convergence and uniform jaw contact

Ratchet engagement testing across all locking notches

Electropolishing, satin matte finishing and passivation of surgical instruments

Stage 06: Surface Conditioning & Passivation

POLISHING / FINISHING

Instruments receive a satin matte non-reflective finish or electro-polishing to minimize glare under operating theatre lights. Chemical nitric or citric acid passivation removes free surface iron, promoting the formation of a continuous chromium-oxide passive film.

Multi-stage satin deburring and bead blasting for uniform matte texture

Chemical passivation bath to ensure long-term corrosion resistance

Water boil test and copper sulfate test verification of passive layer

Stage 07: Quality Verification

INSPECTION

Every single completed instrument is individually inspected against dimensional blueprints. Inspectors utilize vernier calipers, micrometers, and optical magnification to test cutting sharpness, spring resilience, and surface uniformity.

Testing of scissor blades on specialized latex / test sheeting

Dimensional tolerance verification against engineering CAD drawings

Microscopic surface audit for micro-burrs, scratches, or weld seams

Ultrasonic cleaning, silicone tip protection and export packaging

Stage 08: Decontamination & Export Packing

CLEANING & PACKING

Finished instruments are processed through ultrasonic cleaning tanks to remove all polishing compounds and oils, dried in warm air chambers, fitted with protective silicone tip covers, sealed in protective pouches, and boxed in export-grade cartons.

Multi-frequency ultrasonic wash in neutral decontaminant solution

Application of medical-grade silicone tip and jaw protectors

Heat-sealed polyethylene pouches and sturdy double-wall export boxing
